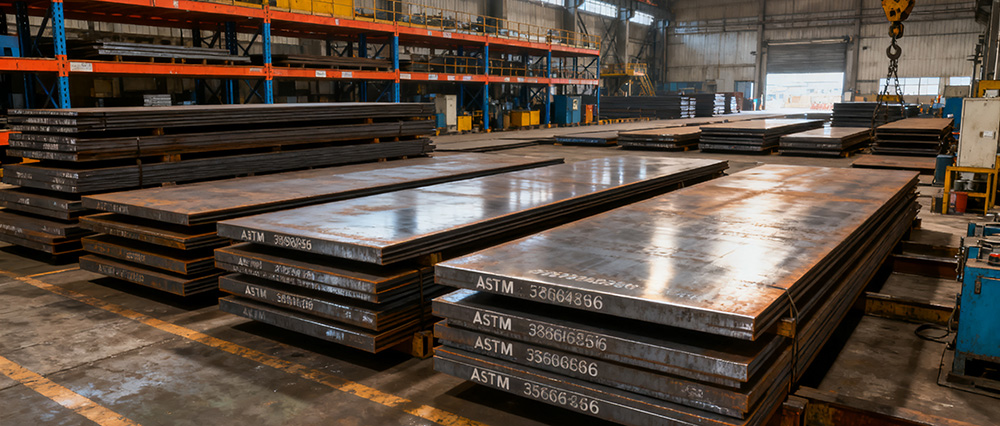

ASTM A36 Carbon Steel Plate: The Backbone of Structural Engineering

The letter "A" denotes that this is a standard for ferrous metals (iron-based metals) within the ASTM system.

The number "36" indicates the material’s minimum yield strength, measured at 36 ksi (kilopounds per square inch), which translates to approximately 250 MPa (megapascals) in the metric system. This yield strength value is not merely a random number but a critical benchmark that defines the material’s ability to resist permanent deformation under load—making it ideal for structural applications where stability and reliability are paramount.

Carbon (C): ≤ 0.26% – Carbon is the primary hardening element in steel, but its content is kept relatively low in ASTM A36 to prioritize weldability and ductility. Excessive carbon would increase brittleness and make welding more challenging, which is undesirable for structural applications requiring strong, seamless joints.

Manganese (Mn): ≥ 0.80% – Manganese acts as a strengthening agent, improving the steel’s tensile strength and hardenability without significantly compromising ductility. It also helps to neutralize the harmful effects of sulfur, reducing the risk of "hot shortness" (brittleness at high temperatures during processing).

Phosphorus (P): ≤ 0.04% – Phosphorus is a residual element that can slightly increase strength but is strictly limited because it tends to cause brittleness, especially at low temperatures. The 0.04% cap ensures the steel maintains good toughness in typical service environments.

Sulfur (S): ≤ 0.05% – Sulfur is another residual impurity that forms brittle compounds (such as iron sulfide) when present in high amounts. Controlling sulfur below 0.05% prevents hot shortness and ensures the steel can be easily formed (e.g., bent, rolled) without cracking.

Silicon (Si): ≥ 0.15% (for killed steel); ≥ 0.20% (for weather-resistant requirements) – Silicon serves as a deoxidizer during steel production, removing excess oxygen to improve the material’s cleanliness and uniformity. For applications where enhanced resistance to atmospheric corrosion is needed (e.g., outdoor structures), a higher silicon content (≥0.20%) is specified to promote the formation of a more protective oxide layer.

Yield Strength: ≥ 250 MPa (36 ksi) – This is the stress at which the steel begins to deform permanently. For structural components like beams and columns, yield strength is critical because it determines the maximum load the component can withstand without losing its shape or structural integrity.

Tensile Strength: 400 - 550 MPa (58 - 80 ksi) – Tensile strength measures the maximum stress the steel can withstand before breaking. The wide range reflects minor variations in composition and processing, but all ASTM A36 plates fall within this range to ensure adequate load-bearing capacity.

Elongation: ≥ 20% (for 200mm gauge length, plates ≤ 50mm thick) – Elongation is a measure of ductility, or the steel’s ability to stretch before fracturing. A minimum elongation of 20% means ASTM A36 can absorb energy and deform plastically under sudden loads (e.g., wind, seismic activity) without brittle failure—an essential trait for structural safety.

Impact Toughness: Good at room temperature – While ASTM A36 is not designed for extreme low-temperature service (unlike ASTM A572, which has enhanced low-temperature toughness), it exhibits excellent impact resistance at ambient temperatures. This means it can withstand sudden shocks or impacts (e.g., from machinery vibration or minor collisions) without cracking.

Exceptional Weldability – This is perhaps ASTM A36’s most valuable trait. Its low carbon content and controlled impurities mean it can be welded using virtually any common welding method, including shielded metal arc welding (SMAW), gas metal arc welding (GMAW/MIG), gas tungsten arc welding (GTAW/TIG), and flux-cored arc welding (FCAW). No complex preheating or post-weld heat treatment is required for most applications, reducing fabrication time and costs while ensuring strong, reliable welds.

Superior Formability – ASTM A36’s high ductility allows it to be easily formed into a wide range of shapes through processes like cold bending, rolling, stamping, and punching. This flexibility makes it ideal for custom components—from curved building brackets to intricate machinery housings—without the risk of cracking or splitting.

Cost-Effectiveness – Thanks to its simple chemical composition (no expensive alloys) and mature production processes, ASTM A36 is one of the most affordable structural steels on the market. Its widespread availability (produced by steel mills worldwide) also helps keep costs low, making it the material of choice for projects where budget constraints are a priority (e.g., low-rise buildings, small bridges, and general fabrication).

Reliable Availability – As a standard structural steel, ASTM A36 is stocked by nearly all steel distributors and service centers globally. This ensures quick lead times for projects, reducing delays and simplifying supply chain management—critical for construction schedules that demand timely material delivery.

Poor Corrosion Resistance – Without alloy additions (like chromium in stainless steel) or protective coatings (e.g., paint, galvanization), ASTM A36 is highly susceptible to rust and corrosion when exposed to moisture, saltwater, or harsh chemicals. It requires regular maintenance (e.g., repainting) for outdoor or industrial environments.

Limited High-Temperature Performance – ASTM A36 loses strength significantly at temperatures above 300°C (572°F) and should not be used in high-heat applications like furnaces, boilers, or exhaust systems. For such uses, heat-resistant alloys (e.g., ASTM A387) are more appropriate.

Low Wear Resistance – Its softness (compared to hardened alloy steels) makes it prone to wear and abrasion, so it is not suitable for components subject to heavy friction (e.g., gears, bearings).

Building and Construction – The single largest user of ASTM A36 is the construction industry. It is used to fabricate structural frames for low-rise and mid-rise buildings (offices, warehouses, residential complexes), as well as beams, columns, joists, and bracing systems. Its weldability and formability allow for quick assembly of complex structures, while its strength ensures long-term stability.

Bridge Engineering – For small to medium-sized bridges (e.g., pedestrian bridges, rural road bridges), ASTM A36 is used in auxiliary structures like guardrails, support brackets, and minor load-bearing components. While large-scale bridges often use higher-strength steels (e.g., ASTM A572), ASTM A36 remains a cost-effective choice for less demanding bridge applications.

Heavy Machinery and Equipment – Manufacturers rely on ASTM A36 for non-critical structural components of machinery, such as truck chassis, tractor frames, equipment bases, and tooling tables. Its formability allows for custom designs, while its strength supports the weight of machinery and loads.

Manufacturing and Fabrication – Beyond large structures, ASTM A36 is used to make a wide range of fabricated products, including storage racks, shipping containers, steel doors, and decorative metalwork. Its affordability and ease of processing make it ideal for low-volume custom fabrication and high-volume production alike.

Infrastructure Projects – From water treatment plants to power distribution stations, ASTM A36 is used in the construction of auxiliary structures, such as pipe supports, platform frames, and equipment enclosures. Its reliability ensures these infrastructure components can withstand decades of service.

China: Q235B – The most direct equivalent to ASTM A36. Q235B (per GB/T 700) has a minimum yield strength of 235 MPa (slightly lower than A36’s 250 MPa, but within acceptable tolerance for most structural applications) and similar weldability and formability. It is widely used in Chinese construction and manufacturing as a substitute for ASTM A36.

Europe: S235JR (EN 10025-2) – S235JR is the European equivalent, with a minimum yield strength of 235 MPa. Like ASTM A36, it is a mild carbon steel designed for structural use, with excellent weldability and ductility. It is commonly used in EU-based construction projects as an alternative to A36.

Japan: SS400 (JIS G3101) – SS400 is Japan’s equivalent grade, with a tensile strength range of 400-510 MPa (matching A36’s 400-550 MPa) and good structural performance. It is widely used in Japanese machinery and construction, often substituting for ASTM A36 in regional projects.

India: Fe 415 (IS 2062) – Fe 415 (Indian Standard) has a minimum yield strength of 250 MPa (identical to A36) and is used in Indian construction as a direct substitute.

Thickness and Strength Requirements – Account for the "thickness effect": if using plates thicker than 50mm, confirm that the reduced yield strength (e.g., 220 MPa for 50-100mm plates) meets the project’s structural demands.

Environmental Conditions – If the plate will be exposed to moisture, salt, or chemicals, plan for protective coatings (e.g., hot-dip galvanization, epoxy paint) or consider upgrading to a weather-resistant steel (e.g., ASTM A588) if long-term corrosion resistance is critical.

Welding and Fabrication Needs – While ASTM A36 is highly weldable, consult with fabricators to ensure compatibility with the chosen welding process and to confirm that no preheating/post-heating is needed (required only for extremely thick plates or cold environments).

International Standards Compliance – For global projects, verify that ASTM A36 (or its equivalent grade) is approved by the project’s governing design code (e.g., AISC 360 for U.S. buildings, Eurocode 3 for European structures).
